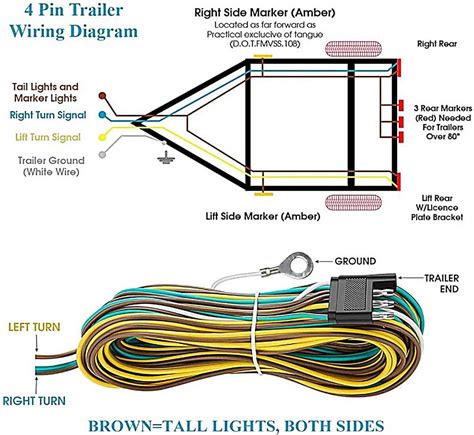

Flat 4 Trailer Wiring. 4 wires will give these functions, so the simplest scheme is a. This gives you all the needed lighting functions to travel legally with your trailer.
Now as we covered the 4 pin flat trailer wiring diagram, let’s discuss the first thing that you will. To properly read a wiring diagram, one has to know how the components within the method operate. Web flat 4 trailer plug wiring diagram.
4 Wires Will Give These Functions, So The Simplest Scheme Is A.
As for the wiring you will need to do a little trouble. Web custom wiring is the ideal solution for installing trailer light wiring on your vehicle. Web flat 4 trailer plug wiring diagram.
This Gives You All The Needed Lighting Functions To Travel Legally With Your Trailer.
For example , when a. In this video we go over how easy and fast it is. Now as we covered the 4 pin flat trailer wiring diagram, let’s discuss the first thing that you will.
Flat 4 Trailer Wiring Diagrams Are Made Up Of Four Distinct Wires, Which Are Black, Green, Yellow, And White.
To properly read a wiring diagram, one has to know how the components within the method operate. Web the minimum recommended gauge of a 4 core trailer wire is 18 awg for the turn lights, brake lights, and running lights. Web the basics of flat 4 trailer wiring diagrams.
For The Ground Wire, The Recommended Size Is 16 Awg.
At a minimum, all trailers need at least 4 functions: Web a 4 flat trailer wiring diagram is a schematic that describes the electrical connections between the components of a 4 flat trailer. Tail lights, brake lights, left & right signals.
